GOLDEN GATE BRIDGE

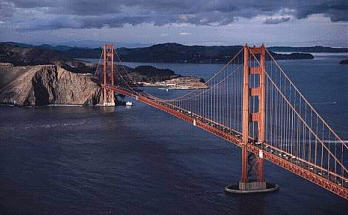

Figure 1. Golden Gate Bridge
The Golden Gate Bridge was completed in 1937. Joseph B. Strauss was the chief engineer. It is located on Interstate 101 between San Francisco and Marin Counties.
The weight of the bridge is 419,800 tons including suspended structure, towers, piers and fenders; but not including anchorages and north and south approaches. The equivalent mass is 3.808 (10^8) kg.
The Golden Gate Bridge is a suspension bridge. It is constructed of steel. Key dimensions are given in Table 1.
The bridge is mounted on concrete piers which extend down to bedrock.
 Table 1. Golden Gate Bridge Dimensions
 Dimension
 meters
 feet
 Total Length
 2740
 8980
 Suspended Span Length(Distance between Towers)
 1280
 4200

Tower Height
 228
 748
 Span Height above Strait
 67
 220
 Height of each Tower above Roadway
 152
 500
 Width
 27.4
 90
In addition to traffic loading, the Golden Gate Bridge must withstand the following environments:
1. Earthquakes, primarily originating on the San Andreas and Hayward faults.
2. Winds of up to 70 miles per hour.
3. Strong ocean currents.
The Golden Gate Bridge has performed well in all earthquakes to date, including the 1989 Loma Prieta Earthquake. Several phases of seismic retrofitting have been performed since the initial construction.
Note that current Caltrans standards require bridges to withstand an equivalent static earthquake force (EQ) of 2.0 g.
The retrofit measures have focused on keeping the Bridge open to emergency vehicles immediately following a major earthquake and to all traffic within one month.
Seismic analysis of the bridge must account for the bridge's natural frequencies. The natural frequencies are shown in Table 2, as taken from Reference 1.
 Table 2. Golden Gate Bridge Natural Frequencies
 Mode Type
 Period of vibration (sec)
 Natural Frequency (Hz)
 Transverse
 18.2
 0.055
 Vertical
 10.9
 0.092
 Longitudinal
 3.81
 0.262
 Torsional
 4.43
 0.226

Reference
1. Anil K. Chopra, Dynamics of Structures: Theory and Applications of Earthquake Engineering Prentice Hall, 1996.
